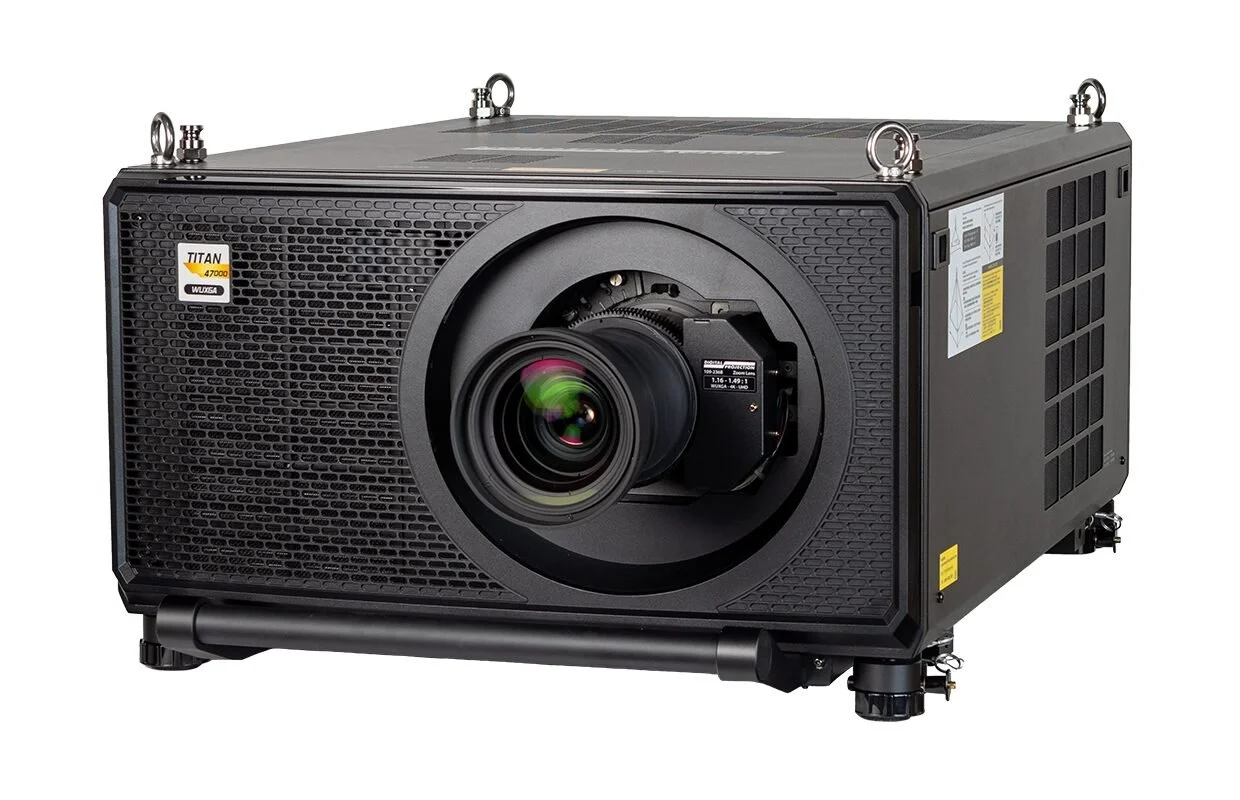

TITAN Laser 47000 WUXGA

The new TITAN family is a huge leap forward over the popular current models, with many aspects completely reimagined and redesigned for efficiency and size. The new model is 15% more efficient when measuring the lumens-per-watt output than the current TITAN and better than the closest competitor, firmly putting down the TITAN’s green credentials alongside its already legendary status as a projection powerhouse. Add to this the extended 40,000-hour illumination lifetime in ECO mode and the dust-proof, filterless design, and the TITAN is designed to run and run with minimal fuss in 24/7 environments.

The extra power and capability have also been engineered into a much more compact chassis, meaning it is 27% brighter, 13.3% smaller, 7.4% lighter and 3dBA quieter than the current model. This regains the TITAN’s position as the Smallest, Lightest, Brightest and Quietest projector in its class.

DETAILS

• Colour System:

  • Blue and Red Lasers with Phosphor wheel

• DMD Specification:

  • 1920 x 1200 pixels native display.

  • Fast transit pixels for smooth greyscale and improved contrast.

• Aspect Ratio:

  • 16x10

• Fill Factor:

  • 87%

KEY FEATURES

• Video & Graphics Processing


  • HDMI 2.0 compliance for Side by Side, Frame Packing, Frame Sequential and TopBottom 3D Formats.

  • DisplayPort 1.2 with HDCP 2.2 compliance.

  • 10-bit colour processing (30 bits per pixel).

  • Support for 1080p 24Hz native display.

  • Support for 4K 4096 x 2160 resolution. Output will be scaled to WUXGA

  • HDR support

  • Input source automatically detected.

  • Input redundancy mode with auto switching.

  • Dual Pipe Processing: Two sources in parallel for the Left and Right eyes.

  • Syncronisation of active 3D glasses or polarising switcher.

  • DICOM simulation mode.

  • Sealed light engine

  General Features

  • Constant Brightness control

  • Multi Projector brightness and colour control.

  • Compatible with selected 3rd-party lenses via lens converter

  • Selectable EDID

  • Custom Start-up Logo

  • Smear Reduction (fast frame) (2D Only)

  • Electronic PIC MUTE with selectable fade-in/out timers

  • On board 4-line LCD display for an at-a-glance status


  Geometry Correction

  • Vertical & Horizontal Keystone correction.

  • Four Corner adjustment.

  • Rotation.

  • Pin/Barrel.

  • Wall Corner adjustment.

  • Centre Shift (Horizontal and Vertical linearity adjustment).

  • Custom Warp.

  • Upload of maps for warp, blend, uniformity and masking.

  • Selectable aspect ratios: 5:4 / 4:3 / 16:10 /16:9 / 1.88 / 2.35 / TheaterScope / Source / Unscaled.

  • Digital Zoom.

  • Blanking control for custom input window sizing.

  Edge Blending

  • Blending control is available for all sides with width control.

  • Correction for non-active pixels at the edge of the display.

  • Electronic Black Level Compensation.

  • Upload of Blend Maps, including Blend, Uniformity, Masking, and Pixel by Pixel

  HDBaseT® Interface

  • Built-in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable

  • Allows the projector to be placed up to 100m from the source with low-cost cabling

  • Supports up to 4K 4096 x 2160@60Hz 4:2:0 or 4K 4096 x 2160@30Hz 4:2:2

  • Includes Ethernet 100BaseT and RS232/IR control.

  Colour Processing

  • Four colour modes available

  • Powerful seven-point colour correction for accurate colour matching with presets.

  • Easy colour temperature selection

  • Manual seven-point colour adjustment

  • Traditional lifts and gains

  Projector Controller Software

  • Intuitive user interface for network control

  • Simultaneous control of user-defined groups of projectors

  • At-a-glance monitoring of projector status

  Projector Automation

  • Real-time clock provides daily on/off automation

  • E-mail alerts for system status

  Installation

  • 4 x eye bolts fitted for easy rigging.

  • 4 x top stacking mounts and mount securing pins supplied as standard accessories.
