Trinnov Amplitude 16
Designed to our specifications in partnership with ICEpower, the Amplitude16 maximizes the performance of their class D modules with custom dual power supply and heat dissipation design.
Features:
Dual power supplies with separate 15A AC mains power inlets
Maximum continuous power of 2800W at 115V and 3200W at 230V with all 16 channels driven
Maximum peak power of 6080W with all 16 channels driven
Bridging option to increase power for specific outputs
Base model: 16-channel amplifier with 200W/channel at 8 ohms and 400W/channel at 4 ohms
Bridged mode: Power increases to 800W/channel at 8 ohms and over 1,000W/channel at 4 ohms

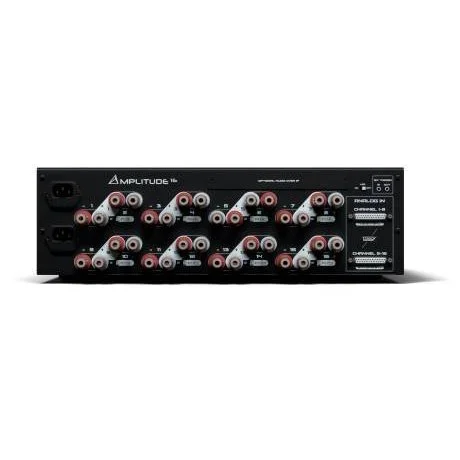

Efficient connectivity with dual Tascam pinout DB25 connectors for balanced analog input
Front panel LED display for operational status and channel information
Trigger inputs and outputs for power control and daisy-chaining amplifiers
Perfect match in input level sensitivity with Altitude output level for maximum dynamic range and signal-to-noise ratio
Optional Audio over IP input board for networked audio connectivity
Audio over IP board includes hardware status monitoring function
The Amplitude16 power amplifier offers versatility, high power output, efficient connectivity, and compatibility with immersive home theaters. It provides integrators with the flexibility to meet diverse channel counts and power requirements, making it an ideal choice for custom installations. Additionally, the optional Audio over IP input board adds future-proofing and networked audio capabilities to the amplifier.
